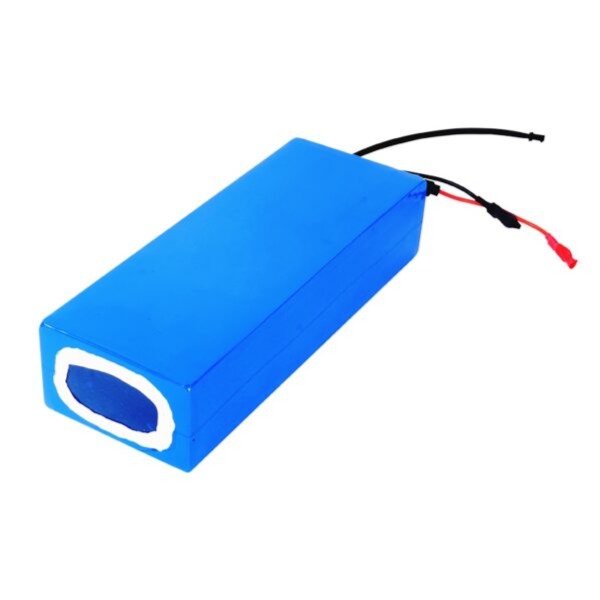

LION EV 36V 12AH LITHIUM ION BATTERY PACK FOR 36V 250W/350W/500W E-BIKE MOTOR
Feature:
1. Cells - A grade cells to make sure batteries in high and full capacity
2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger,
anti-over current, anti-overload
3. Compose Type : Injection Technology to make battery more stable.
4. Certifications : CE,UL,FCC, RoHS, ISO9001
5. Long life cycle, No memory, environment friendly.
|
Battery Model |
36v 12ah |
|
Nominal Voltage (V) |
36v |
|
Nominal Capacity (AH) |
12ah |
|
Source Resistance (mΩ) |
about 40 |
|
Cell Specification |
3.7V 2.0AH |
|
Cell Combination |
6-parallel 13-series |
|
Cell Size |
3.7v 2000mah 18650 |
|
Cell Quantity (parallel*series) |
60pcs |
|
Discharge Cutoff Voltage (V) |
30+/- 1V |
|
Charge Cutoff Voltage (V) |
42v |
|
Rated Discharge Current (A) |
15A |
|
instantaneous Maximum Discharge Current (A) |
45A |
|
Maximum Continuous Discharge Current (A) |
15A |
|
Maximum Continuous Charge Current (A) |
5A |
|
Charge Mode |
CC-CV |
|
Standard Charge Current (A) |
2A |
|
Charge Time under Standard Charge Current |
6hours |
|
Fast Charge Current (A) |
5A |
|
Charge Time under Fast Charge Current |
2.5hours |
|
Charge Temperature Range |
-20-55°C |
|
Cell Size (L*W*T ) |
235*105*70mm(+/-5mm) |
|
Battery Weight |
About3.5KG |
|
Battery Power |
250W 350W 500W |
